A Raspberry Pi Pico and KY-033 Line Detector module

by rp2040guy71

In this article, we connect a KY-033 Line Detector to a Raspberry Pi Pico, any Rp2040 type board will be suitable. We actually tested this with a Cytron Maker Pi Pico

We will use Micropython for these examples but of course you can use the Arduino IDE as well if you have Raspberry Pi Pico support enabled

This module has an IR transmitter/receiver, and an LM393 differential comparator mounted on a breakout board with a potentiometer and several resistors.

The KY-033 module detects if the surface in front of the infrared transmitter/receiver absorbs or reflects light. A dark surface will absorb the light while a light surface in turn will reflect the light. This means that if the surface is dark, the signal pin will be pulled HIGH. And if the surface is light, the signal pin will be LOW.

The indicator LED turns on when the infrared light is reflected back to the receiver, meaning that a line is not detected.

We can then of course check for that value by connecting that pin to a Pico and setting it to be an input

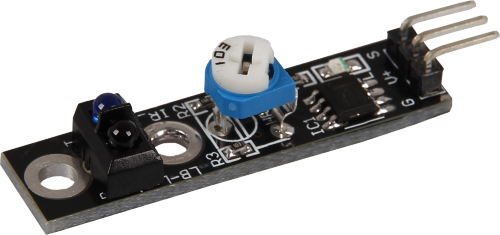

The sensor looks like this

Parts Required

You can connect to the module using dupont style jumper wire.

Name   Link
Raspberry Pi Pico
37 in one sensor kit
Connecting cables

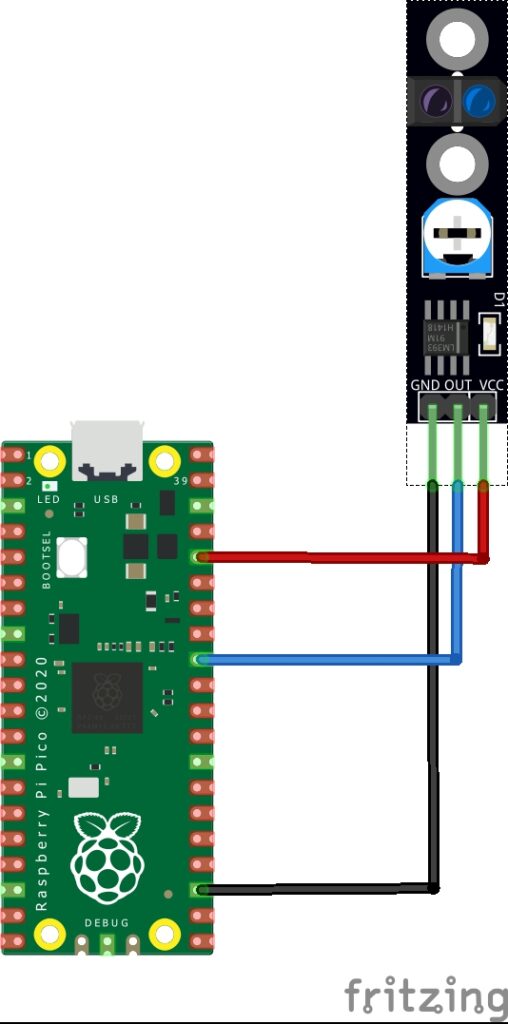

Schematic/Connection

Pico SENSOR
GPIO27 S
3v3 Middle pin
GND



Code Examples

Basic example

from machine import Pin
from time import sleep

# Initialization of GPIO27 as input
sensor = Pin(27, Pin.IN, Pin.PULL_DOWN)

# Continuous loop
while True:
    if sensor.value() == 0:
        print("No line present")
    else:
        print("Line present")

    print("-------------------------------------")
    sleep(1)



REPL Output

Draw a thick black line on a piece of paper and move the sensor over it or just cover it with a black/dark object. You may have to adjust the potentiometer to adjust the sensitivity

MicroPython v1.17 on 2021-09-02; Raspberry Pi Pico with RP2040
Type “help()” for more information.
>>> %Run -c $EDITOR_CONTENT
No line present
————————————-
No line present
————————————-
No line present
————————————-
No line present
————————————-
No line present
————————————-
No line present
————————————-
Line present

Links

https://github.com/getelectronics/rp2040learning/tree/main/Sensor%20Kit/KY-033%20Line%20Detector
