Raspberry Pi Pico st7735s 1.8 inch lcd micropython example

In this article we look at another CD option for your Raspberry Pi Pico,its a 1.8 inch LCd with dimensions of 128 x 160 and is based on the ST7735 IC.

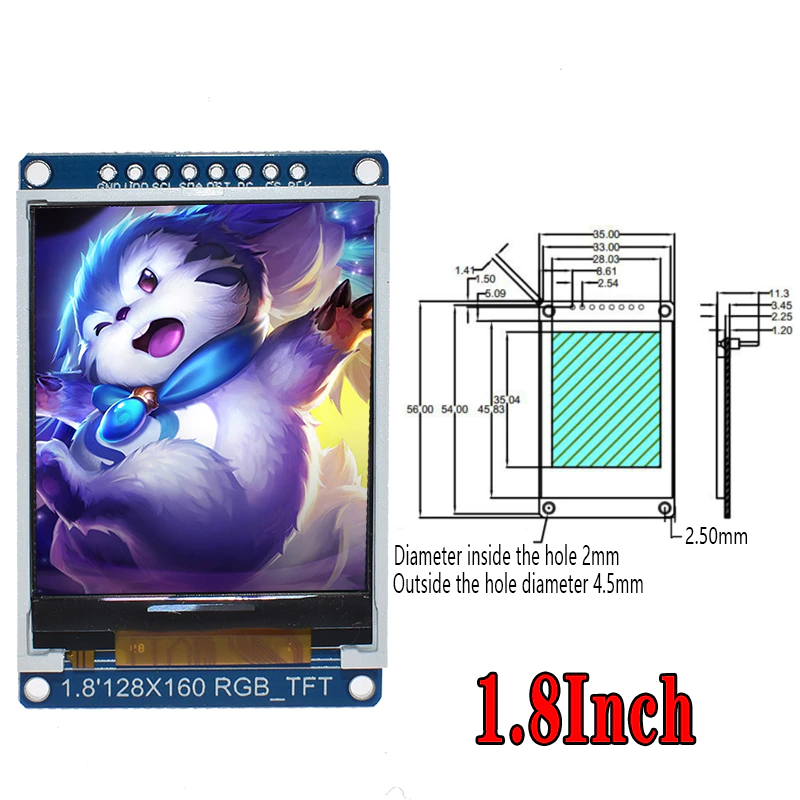

There are many variants of the LCD that use this driver ic. This is the one that I purchased

Specs

SIZ : E0.96inch
Display Mode : Normally black IPS
Display Format : Graphic 80RGB*160 Dot-matrix
Input Data : SPI interface
Drive : ICST7735S
Dimensional outline 24(W)*30 (H)*2.8+/-0.1(T)mm
Resolution 80 RGB*160 Dots
LCD Active area 10.8 (W)*21.7 (H)
Dot pitch0.135(H) x 0.1356(V) mm
Operating Temperature-20～70°C

Pin Descriptions

PIN No	Symbol	Description
1	GND	Ground
2	VCC	Power 3.3V
3	SCL
4	SDA
5	RESLCM	Reset pin – This pin is reset signal input. When the pin is low, initialization of the chip is executed. Keep this pin pull high during normal operation.
6	DC	Data/Command Control
7	CS	Chip Select
8	BLK	Backlight control pin

Connection

This is the connection I used

LCD	Pico	Description
VCC	VSYS	Power Input
GND	GND	GND
DIN	GP11	MOSI pin of SPI, slave device data input
CLK	GP10	SCK pin of SPI, clock pin
CS	GP9	Chip selection of SPI, low active
DC	GP8	Data/Command control pin (High for data; Low for command)
RST	GP12	Reset pin, low active
BL	GP13	Backlight control

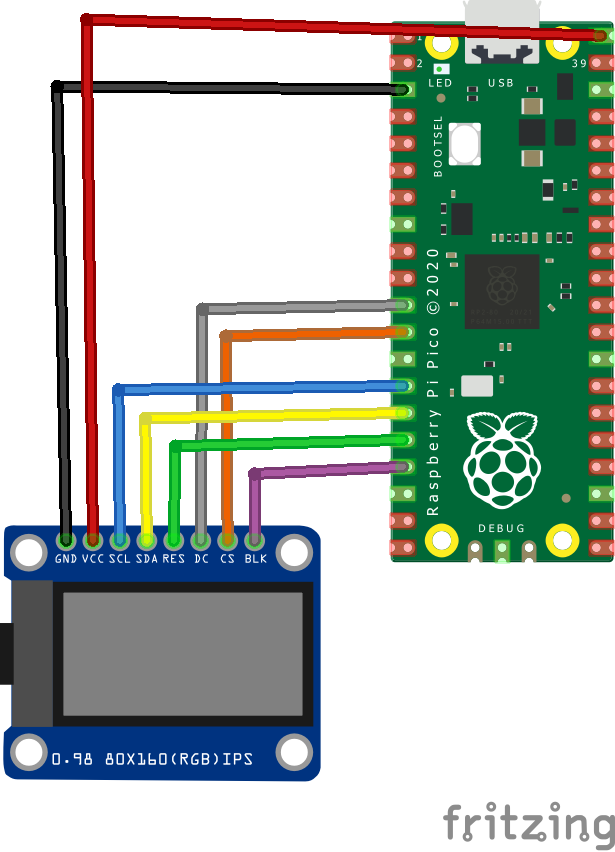

The only fritzing part I could find was a for a smaller LCD but its exactly the same pinout

Parts

Name	Link
Pico	Raspberry Pi Pico Development Board
ST7735 lCD	Aliexpress link

Connecting cables	Aliexpress product link Lysee 3D Printer Parts & Accessories – AHT20 Temperature and Humidity Sensor Module DHT11 Upgrade I2C XD Humidity Sensor Probe – (Color: Green) Ebay link

Code example

I used thonny for development

You need the following 2 libraries to be uploaded to your Pico, we have combined them in one file – ST7735

This is a test example which demonstrates a lot of the functionality

from ST7735 import TFT
from sysfont import sysfont
from machine import SPI,Pin
import time
import math

BL = 13
DC = 8
RST = 12
MOSI = 11
SCK = 10
CS = 9

spi = SPI(1, baudrate=20000000, polarity=0, phase=0, sck=Pin(10), mosi=Pin(11), miso=None)
tft=TFT(spi,8,12,9)
tft.initr()
tft.rgb(True)

def testlines(color):
    tft.fill(TFT.BLACK)
    for x in range(0, tft.size()[0], 6):
        tft.line((0,0),(x, tft.size()[1] - 1), color)
    for y in range(0, tft.size()[1], 6):
        tft.line((0,0),(tft.size()[0] - 1, y), color)

    tft.fill(TFT.BLACK)
    for x in range(0, tft.size()[0], 6):
        tft.line((tft.size()[0] - 1, 0), (x, tft.size()[1] - 1), color)
    for y in range(0, tft.size()[1], 6):
        tft.line((tft.size()[0] - 1, 0), (0, y), color)

    tft.fill(TFT.BLACK)
    for x in range(0, tft.size()[0], 6):
        tft.line((0, tft.size()[1] - 1), (x, 0), color)
    for y in range(0, tft.size()[1], 6):
        tft.line((0, tft.size()[1] - 1), (tft.size()[0] - 1,y), color)

    tft.fill(TFT.BLACK)
    for x in range(0, tft.size()[0], 6):
        tft.line((tft.size()[0] - 1, tft.size()[1] - 1), (x, 0), color)
    for y in range(0, tft.size()[1], 6):
        tft.line((tft.size()[0] - 1, tft.size()[1] - 1), (0, y), color)

def testfastlines(color1, color2):
    tft.fill(TFT.BLACK)
    for y in range(0, tft.size()[1], 5):
        tft.hline((0,y), tft.size()[0], color1)
    for x in range(0, tft.size()[0], 5):
        tft.vline((x,0), tft.size()[1], color2)

def testdrawrects(color):
    tft.fill(TFT.BLACK);
    for x in range(0,tft.size()[0],6):
        tft.rect((tft.size()[0]//2 - x//2, tft.size()[1]//2 - x/2), (x, x), color)

def testfillrects(color1, color2):
    tft.fill(TFT.BLACK);
    for x in range(tft.size()[0],0,-6):
        tft.fillrect((tft.size()[0]//2 - x//2, tft.size()[1]//2 - x/2), (x, x), color1)
        tft.rect((tft.size()[0]//2 - x//2, tft.size()[1]//2 - x/2), (x, x), color2)


def testfillcircles(radius, color):
    for x in range(radius, tft.size()[0], radius * 2):
        for y in range(radius, tft.size()[1], radius * 2):
            tft.fillcircle((x, y), radius, color)

def testdrawcircles(radius, color):
    for x in range(0, tft.size()[0] + radius, radius * 2):
        for y in range(0, tft.size()[1] + radius, radius * 2):
            tft.circle((x, y), radius, color)

def testtriangles():
    tft.fill(TFT.BLACK);
    color = 0xF800
    w = tft.size()[0] // 2
    x = tft.size()[1] - 1
    y = 0
    z = tft.size()[0]
    for t in range(0, 15):
        tft.line((w, y), (y, x), color)
        tft.line((y, x), (z, x), color)
        tft.line((z, x), (w, y), color)
        x -= 4
        y += 4
        z -= 4
        color += 100

def testroundrects():
    tft.fill(TFT.BLACK);
    color = 100
    for t in range(5):
        x = 0
        y = 0
        w = tft.size()[0] - 2
        h = tft.size()[1] - 2
        for i in range(17):
            tft.rect((x, y), (w, h), color)
            x += 2
            y += 3
            w -= 4
            h -= 6
            color += 1100
        color += 100

def tftprinttest():
    tft.fill(TFT.BLACK);
    v = 30
    tft.text((0, v), "Hello World!", TFT.RED, sysfont, 1, nowrap=True)
    v += sysfont["Height"]
    tft.text((0, v), "Hello World!", TFT.YELLOW, sysfont, 2, nowrap=True)
    v += sysfont["Height"] * 2
    tft.text((0, v), "Hello World!", TFT.GREEN, sysfont, 3, nowrap=True)
    v += sysfont["Height"] * 3
    tft.text((0, v), str(1234.567), TFT.BLUE, sysfont, 4, nowrap=True)
    time.sleep_ms(1500)
    tft.fill(TFT.BLACK);
    v = 0
    tft.text((0, v), "Hello World!", TFT.RED, sysfont)
    v += sysfont["Height"]
    tft.text((0, v), str(math.pi), TFT.GREEN, sysfont)
    v += sysfont["Height"]
    tft.text((0, v), " Want pi?", TFT.GREEN, sysfont)
    v += sysfont["Height"] * 2
    tft.text((0, v), hex(8675309), TFT.GREEN, sysfont)
    v += sysfont["Height"]
    tft.text((0, v), " Print HEX!", TFT.GREEN, sysfont)
    v += sysfont["Height"] * 2
    tft.text((0, v), "Sketch has been", TFT.WHITE, sysfont)
    v += sysfont["Height"]
    tft.text((0, v), "running for: ", TFT.WHITE, sysfont)
    v += sysfont["Height"]
    tft.text((0, v), str(time.ticks_ms() / 1000), TFT.PURPLE, sysfont)
    v += sysfont["Height"]
    tft.text((0, v), " seconds.", TFT.WHITE, sysfont)

def test_main():
    tft.fill(TFT.BLACK)
    tft.text((0, 0), "Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur adipiscing ante sed nibh tincidunt feugiat. Maecenas enim massa, fringilla sed malesuada et, malesuada sit amet turpis. Sed porttitor neque ut ante pretium vitae malesuada nunc bibendum. Nullam aliquet ultrices massa eu hendrerit. Ut sed nisi lorem. In vestibulum purus a tortor imperdiet posuere. ", TFT.WHITE, sysfont, 1)
    time.sleep_ms(1000)

    tftprinttest()
    time.sleep_ms(4000)

    testlines(TFT.YELLOW)
    time.sleep_ms(500)

    testfastlines(TFT.RED, TFT.BLUE)
    time.sleep_ms(500)

    testdrawrects(TFT.GREEN)
    time.sleep_ms(500)

    testfillrects(TFT.YELLOW, TFT.PURPLE)
    time.sleep_ms(500)

    tft.fill(TFT.BLACK)
    testfillcircles(10, TFT.BLUE)
    testdrawcircles(10, TFT.WHITE)
    time.sleep_ms(500)

    testroundrects()
    time.sleep_ms(500)

    testtriangles()
    time.sleep_ms(500)

test_main()

Links

LCD Micropython
